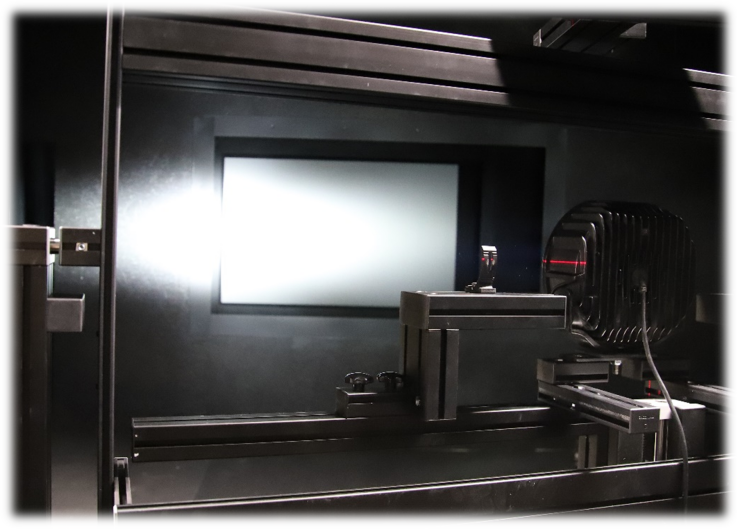

SSL BTC 2000 Screen Imaging Goniometer

SSL DECO 27 (previously named by SSL C-2R.270) is a floor mount goniometer of type 2.1 (EN13032-1:2004 clause 6.1.1.2) with the turning detector (γ axis) and luminaire (C axis) features. SSL DECO 27 moving detector goniophotometer completely meets the requirements of unchanged burning positions stated in IES LM79-08 Clause 9.3.1.

SSL FiLMI 2.3 creates a luminance map over an area by one mouse click. This data can be used to determine the level and variation of luminance in the measurement area. These values are needed e.g. when lighting of roads are evaluated.

• SSL-FiLMI-sw measurement parameters
• L_av (average luminance)
• U_o overall uniformity
• U_ow (overall uniformity wet
• U_l (longitudinal uniformity)
• required illumination at the entrance of a tunnel (L20 and perceived contrast)

Determination of these are required in road lighting standards like CIE 088 and EN 13201.

An automatic report is saved or printed after the measurement. The report includes identification data for the measured object, the measured parameter values and pass/fail criteria if such exist.

Note: Flicker measurement is requested by ecodesign regulation for all the light sources put to market after 1.9.2021

SSL FAS 21 setup

• dedicated and cost effective setup for flicker analysis of luminaires
• optional fully integrated network voltage fluctuation module

Flicker photometer or colorimeter

• select one that best fits your application
• choice of measurement ranges from 0.003 lx to 10 000 000 lx
• USB or RS-232
• linearity better than 0.1%

Flicker-sw

• measurements available: Percent flicker, Flicker index, Flicker frequency, SVM and PstLM
• fail / pass check
• automated reporting
• statistics of several consecutive flicker measurements
• averaging for noisy illuminance signal

Options

• simulation of the input voltage fluctuation as described in IEC TR 61547-1
• SSL stand & SSL stray light tube for reducing the effect of surrounding light
• effective intensity measurement

Turn-key Testing System for Quality Control in Production Lines of Luminaires

LightTester 100, LightTester 160 and LightTester 280 (maximum size of luminaire 100cm, 160cm or 280cm, respectively) are test stations for quality control of luminaires during production. The verification of most important photometric values (such as lumens, CCT etc.) and electrical safety has been integrated into one single test unit. The testing sequence time is even < 10 seconds, so the LightTesters are suitable for 100% testing scheme. The LightTester 100/160/280 is delivered as a ready-made package, including everything you need, such as a test station table, test computer with software and measuring equipment, sticker printer, dimmer...

In the test software, the measured values ​​are stored in a database. In the test software it is possible to give fail-pass criteria for each luminaire type and for each measurement parameter.

The LightTester 100/160/280 can be configured to be integrated as a part of the production assembly line or they can be stand-alone testing setup
