RGB backlit capacitive touch switch
REF: ZVITR1/2/4/6/8

Polycarbonate capacitive touch switches with customisable icons. 1, 2, 4, 6, or 8 button versions all available with RGB backlit icons that adapt according to proximity sensor. Tecla RGB incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors.

It is compatible with KNX Secure.

Accessories: temperature probe and motion sensor.

Finishes: Matt white, Anthracite black, Silver, Champagne, Mocha.

Device for remote control with Zennio Remote (up to 100 controls)

DIN rail device (2 units) that allows the remote control of the installation through Zennio Remote, being able to distribute 100 controls in up to 12 customizable pages. It includes 10 logical functions. It is compatible with KNX Secure.
Advanced features can be activated with the following licenses:

• License for 80 additional controls:
  • Ref. ZLICRB80V – Virtual License
  • Ref. ZLICRB80BX – Box License
• ZenVoice License – Voice Control License:
  • Ref. 8500008 – Virtual License
  • Ref. ZLICZVBX – Box License

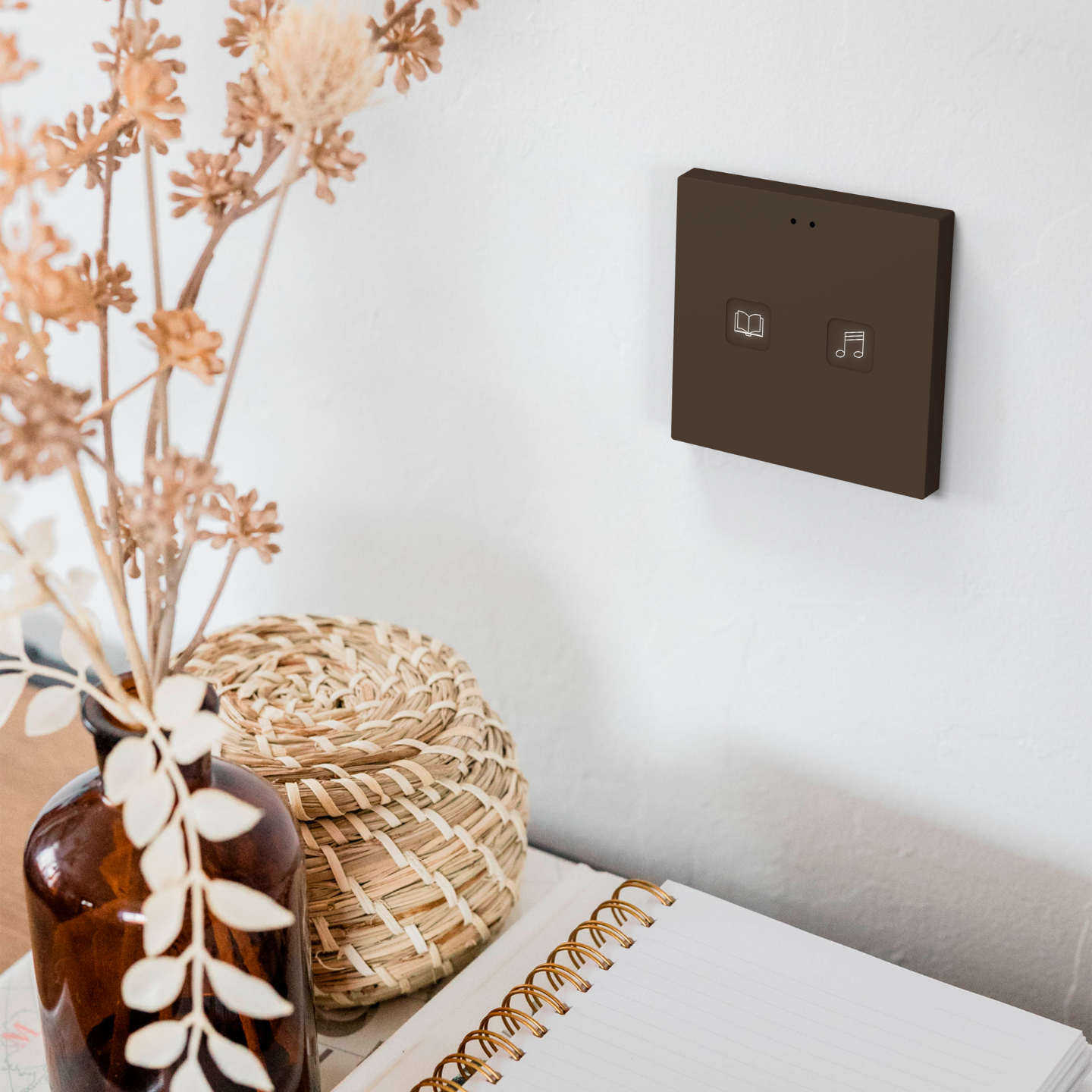

RGB backlit capacitive touch switch
REF: ZVIFR55X1/X2/X4/X6

Customisable RGB backlit capacitive touch switches in the Flat family with proximity sensor and flat design (9 mm). Create unique designs including images, icons, texts or logos printed on tempered glass. 1, 2, 4, 6 or 8-button versions available all with backlit icons that adapt according to the proximity sensor. Flat RGB incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors.

It is compatible with KNX Secure.

Accessories: temperature probe and motion sensor.

Finishes: Matt white, Anthracite black, Silver, Champagne, Mocha.

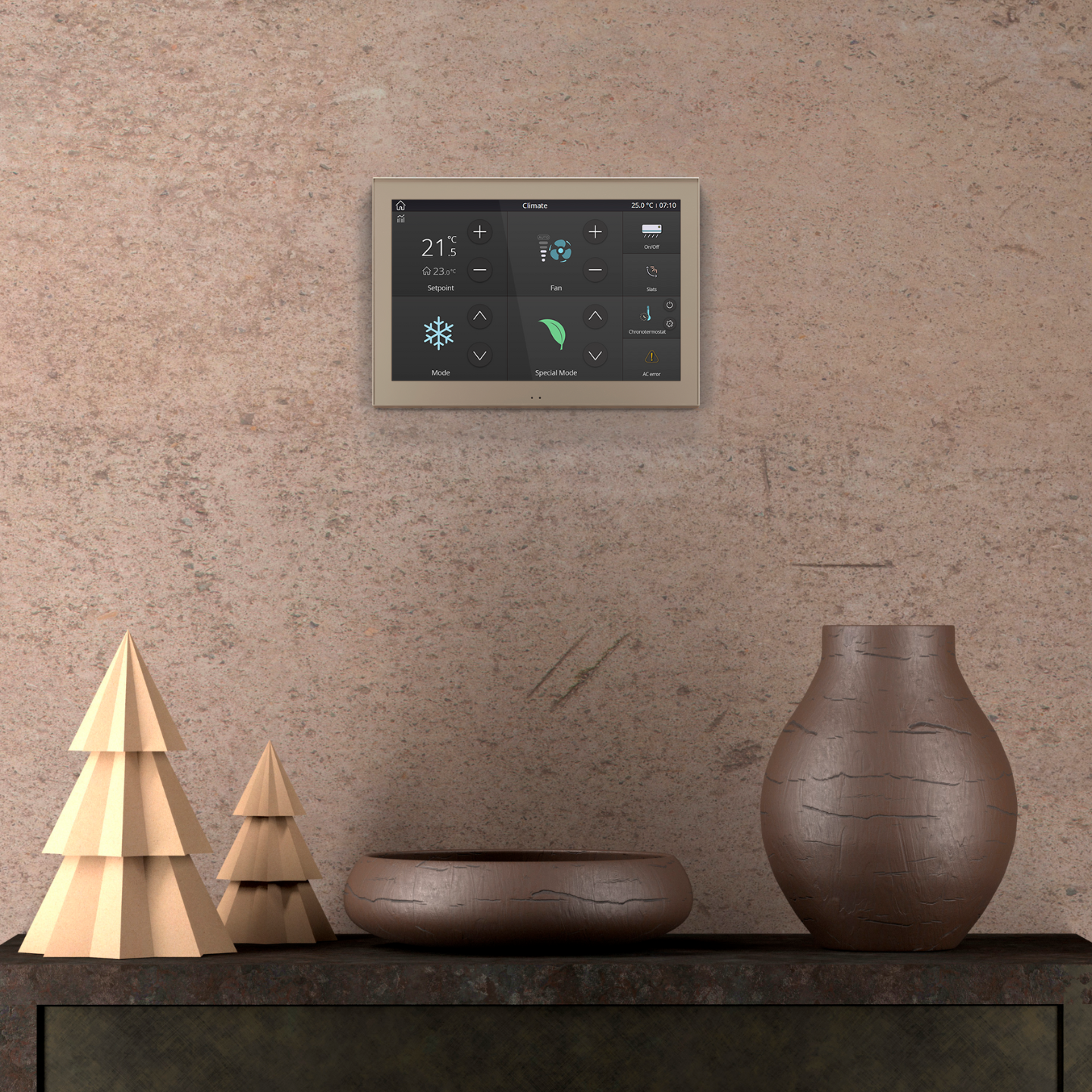

Color capacitive touch panel with 10" display.

REF: ZVIZ100

Capacitive Touch panel with 10”, 16 million color LCD display and 1280×800 pixel resolution for a integral control of the home, room hotel or any other kind of installation thanks to its 12 fully customizable pages, complying with a timeless and minimalist aesthetic. It includes an ambient luminosity sensor for brightness automatic adjustment as well as a proximity sensor for a quick start when detected activity, which can also launch a configured screensaver. Moreover, it incorporates 2 thermostats and 4 analogue-digital inputs. It has USB and Ethernet ports for program update.
Installation in European/British standard double back box.

Advanced features can be activated with the following licenses:

• Remote Control License – Remote control through a mobile app or a web browser:
  • Ref. 8500006 – Virtual License
  • Ref. ZLIC70RCBX – Box License
• Video Intercom License – Integration with the video intercom systems:
  • Ref. 8500007 – Virtual License
  • Ref. ZLIC70VPBX – Box License
• ZenVoice License – Voice Control License. Remote Control License is needed (Ref. ZLIC70RCBX/8500006):
  • Ref. 8500008 – Virtual License
  • Ref. ZLICZVBX – Box License

Accessories: temperature probe and motion sensor.

Finishes: Matt white, Anthracite black, Silver, Champagne, Mocha.

RGB backlit capacitive touch switch
REF: ZVITR1/2/4/6/8

Polycarbonate capacitive touch switches with customisable icons. 1, 2, 4, 6, or 8 button versions all available with RGB backlit icons that adapt according to proximity sensor. Tecla RGB incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors.

It is compatible with KNX Secure.

Accessories: temperature probe and motion sensor.

Finishes: Matt white, Anthracite black, Silver, Champagne, Mocha.

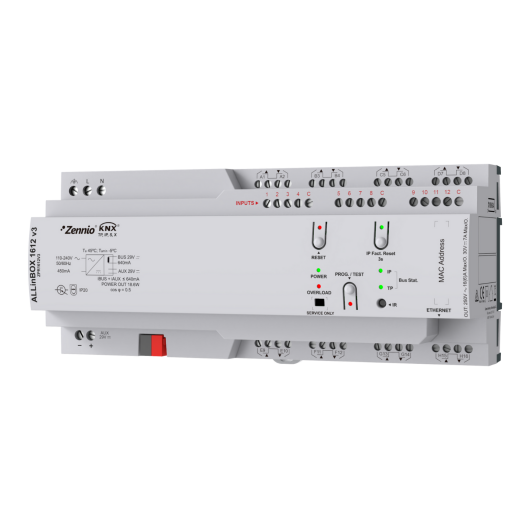

Device for remote control with Zennio Remote (up to 100 controls)

DIN rail device (2 units) that allows the remote control of the installation through Zennio Remote, being able to distribute 100 controls in up to 12 customizable pages. It includes 10 logical functions. It is compatible with KNX Secure.
Advanced features can be activated with the following licenses:

• License for 80 additional controls:
  • Ref. ZLICRB80V – Virtual License
  • Ref. ZLICRB80BX – Box License
• ZenVoice License – Voice Control License:
  • Ref. 8500008 – Virtual License
  • Ref. ZLICZVBX – Box License

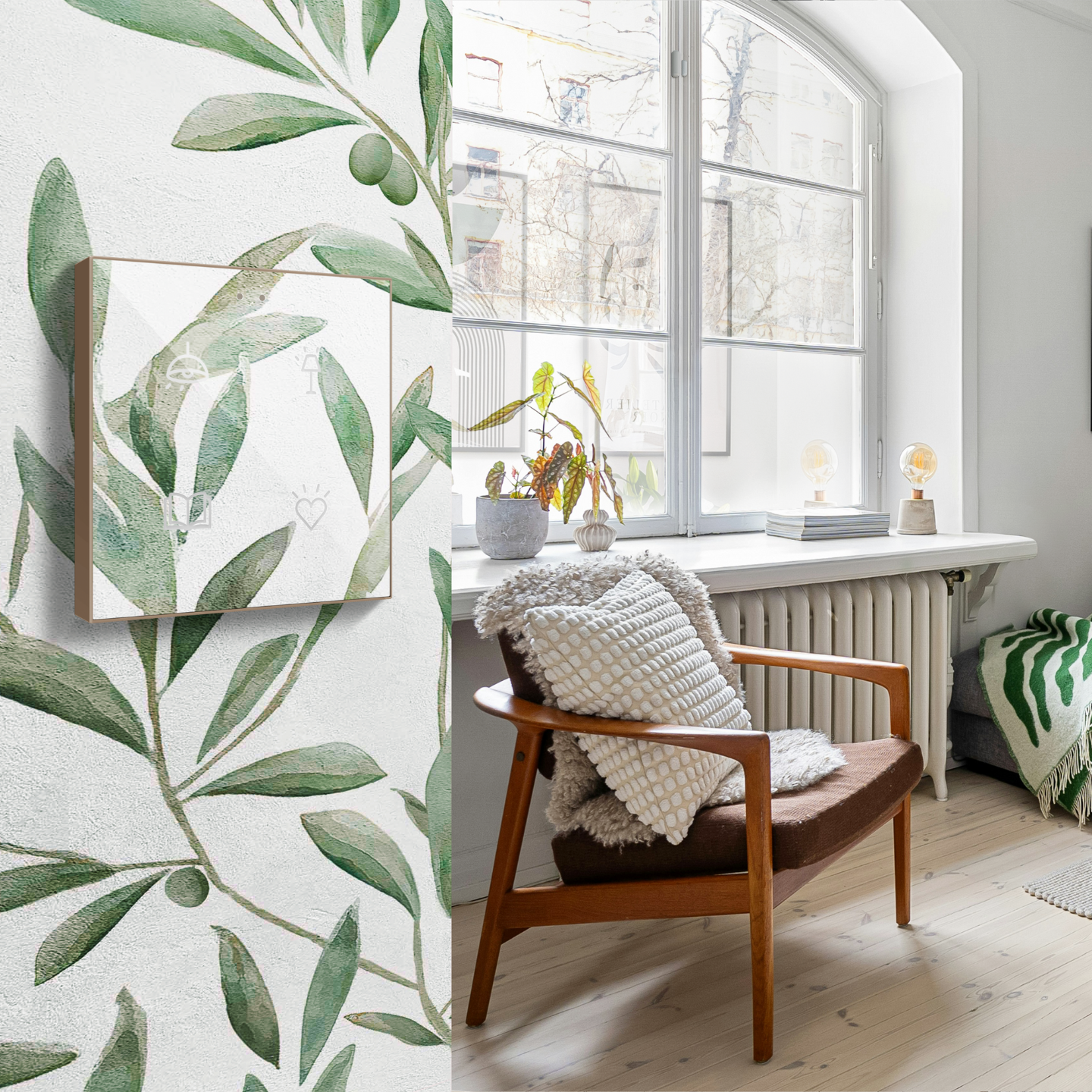

RGB backlit capacitive touch switch
REF: ZVIFR55X1/X2/X4/X6

Customisable RGB backlit capacitive touch switches in the Flat family with proximity sensor and flat design (9 mm). Create unique designs including images, icons, texts or logos printed on tempered glass. 1, 2, 4, 6 or 8-button versions available all with backlit icons that adapt according to the proximity sensor. Flat RGB incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors.

It is compatible with KNX Secure.

Accessories: temperature probe and motion sensor.

Finishes: Matt white, Anthracite black, Silver, Champagne, Mocha.
