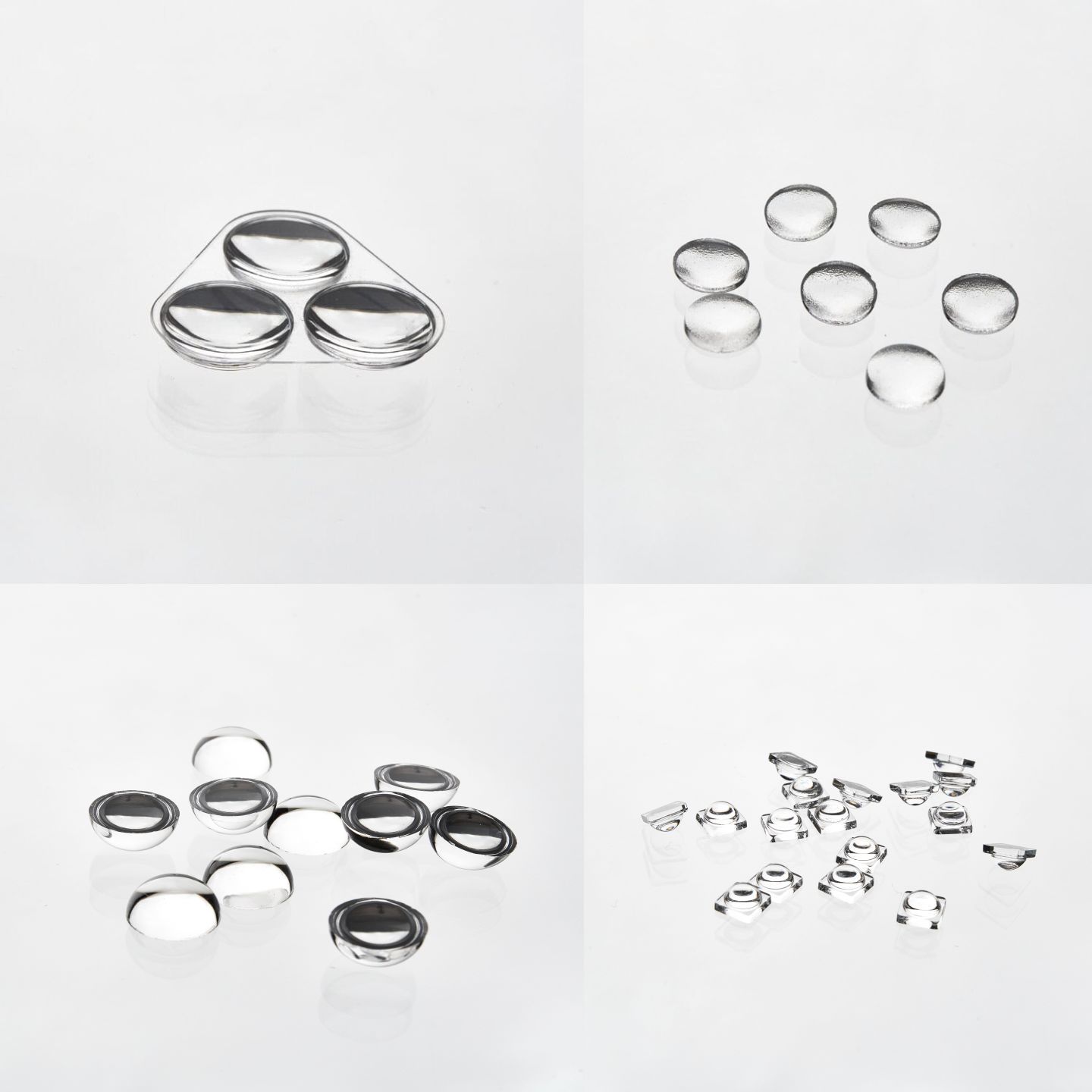

Glass optics is used to protect LED chip before degradation or to tune the illumination angle. Optics of small sizes can be made using our hand molding process in order to reach surface of high quality and shape precision.

We are ready to help you with the optical design and verification of the existing one.

Similar small optics can also be used as primary optics in car headlamps.

Lenses and Mirrors

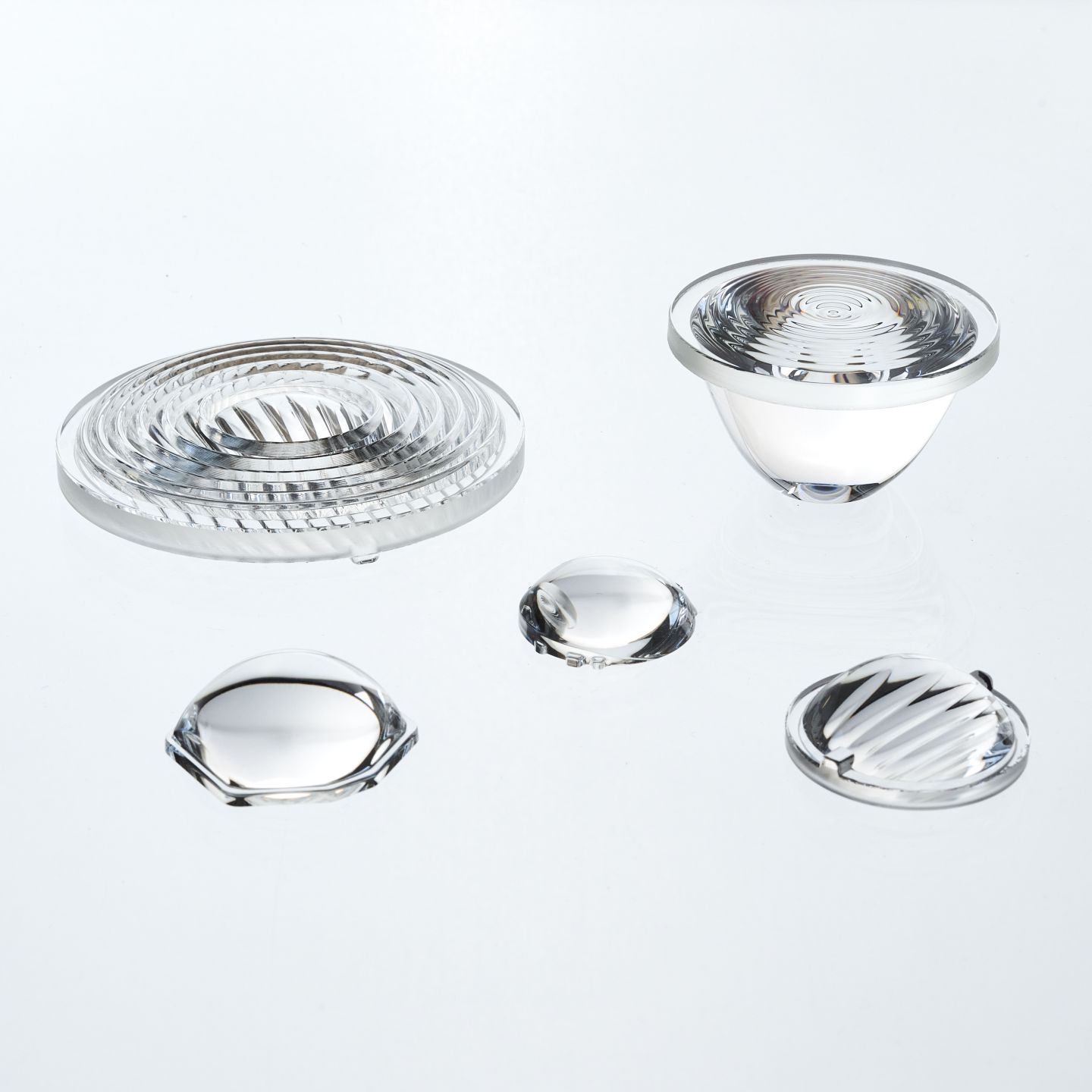

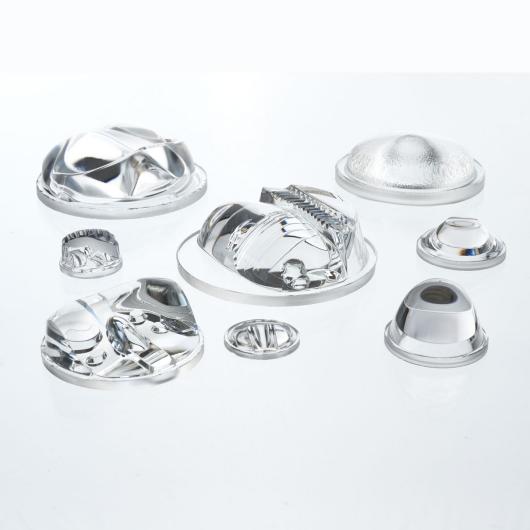

The lenses manufactured by ECOGLASS are optimized for various light applications. We have experience with manufacturing aspherical, spherical, plan-convex and other lens types. The great advantage of our molding process is especially the production of various freeform lenses and shapes. Explore our standard lens offer or contact us with production according to your own design.

TIR Collimators

The advantage of TIR collimator optics is its high efficiency. By placing the LED source in the cavity at the back side of the lens, almost 100% of the light source rays are collected and directed to the required area. The optical shape at the lens exiting surface allows subsequent shaping of the light beam. You can also find a large selection of TIR optics in our standard offer. Feel free to contact us with the production of your own design optics.

Lens Arrays

Lens arrays allow accurate and efficient assembly of a large number of lenses and maintain their correct position even during vibrations or shocks. Furthermore, efficient assembly is promoted by using lens matrix when having lenses of smaller dimensions. In the matrix we can reach lenses smaller than one millimetre. Contact us with your inquiry.

OPTICAL DESIGN AND SIMULATION

If you know the optical function of your required optical element but do not have a final design and a 3D model, we can propose the final shape for you. We have years of experience in optical design based on various demands. You can find some of our interesting projects on our News page.

3D SCANNING AND REVERSE ENGINEERING

Our 3D scanning enables us to perform shape verification, detailed error analyses and reverse engineering including 3D model reconstruction from a physical sample. We have successfully reconstructed several optical elements. Real example from our work.

OPTICAL DESIGN

ECOGLASS has years of experience developing and designing special optics for LED lighting, optical systems for airfield lighting or train headlamps. We can design optics according to your specific requirements for your application. Being glass experts and after working for more than 30 years in glass industry, we design optics with respect to manufacturing limits. Our optical simulation software TracePro enables us to work with various materials and ray data of LED sources or design laser source. We use illumination data or images of target to tune the result with respect to customer’s requirements. Result of our work is a 3D model of optical component/s and simulation results.

Once the customer is satisfied with the result in simulation we can follow by manufacturing prototypes and serial production.

OPTICAL SIMULATION

If you already have a 3D model of your optics but would like to test it with various light sources we can prepare a report with simulation results using our software.

We offer a wide range of our Standard optical elements, which you can find at our online shop. If you are not sure which lens to choose we can test several of our optics in your optical system and make a recommendation.

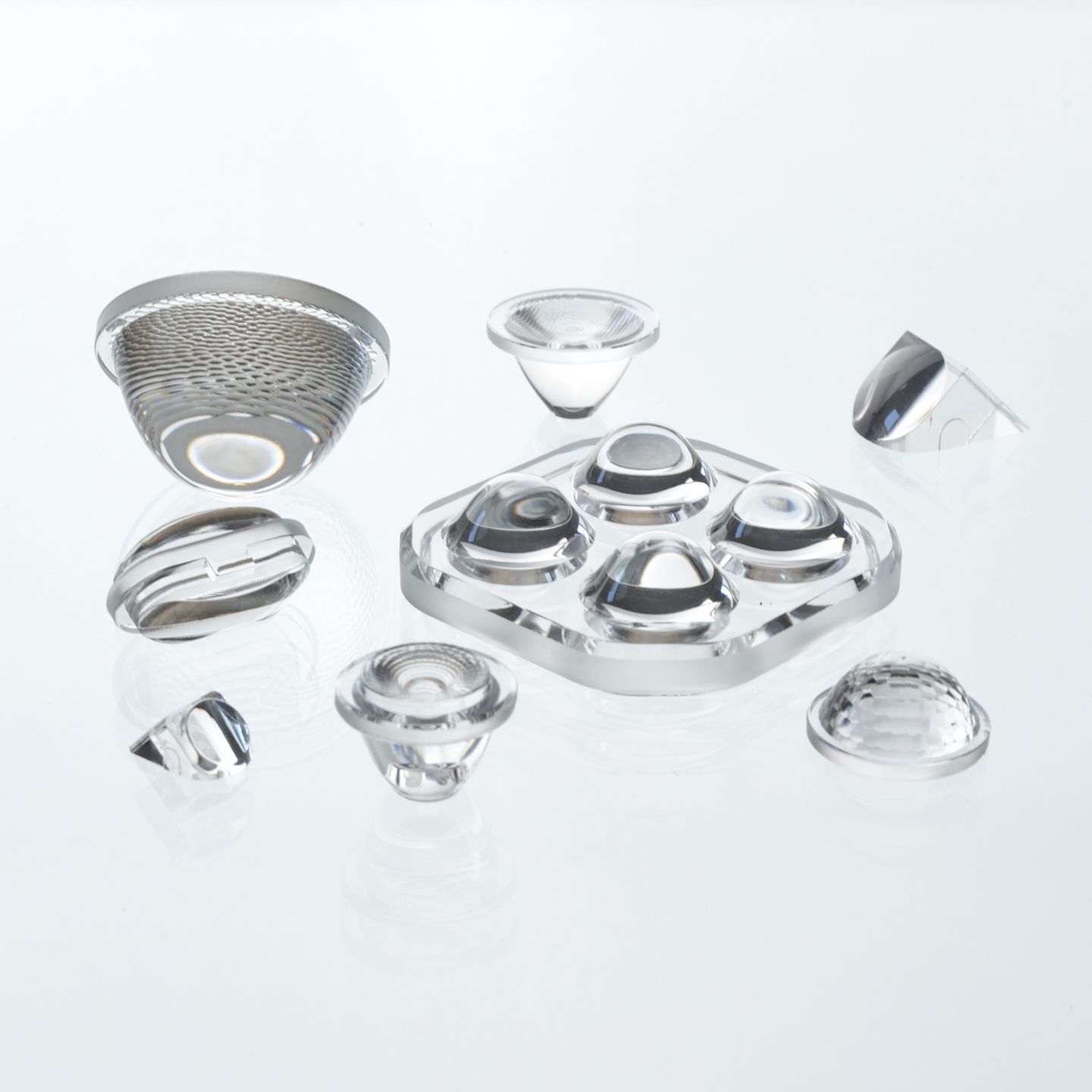

We manufacture glass components for lighting applications in various shapes and sizes, highly efficient glass lenses for various LED and laser sources. Examples of our products include aspheric lenses, free-form lenses, lens systems, collimators, TIR optics, and Fresnel lenses.

We recently designed three lenses for industrial lighting with different illumination properties but identical mounting parameters.

We offer comprehensive services including optical design of glass parts, optical simulation of already existing parts, production of prototypes as well as serial deliveries to our customers. We are equipped with own light laboratory for evaluation of photometrical data using goniophotometer.

We use soda-lime glass as well as borosilicate glass resistant to thermal shock.
Optical design is carried out using commercial software TracePro.
We design and manufacture specific surface microstructures providing suppression or elimination of undesired color effects occurring in combination with LED sources.
Our production process allows to manufacture parts up to roughly 100mm in diameter and 300grams in weight.
Our products are used in architectural lighting, industrial lighting, stage lighting and many indoor lights as well as in outdoor and street lighting.
