UP¹ – The new standard. Designed by craftsmen, made by KAISER.

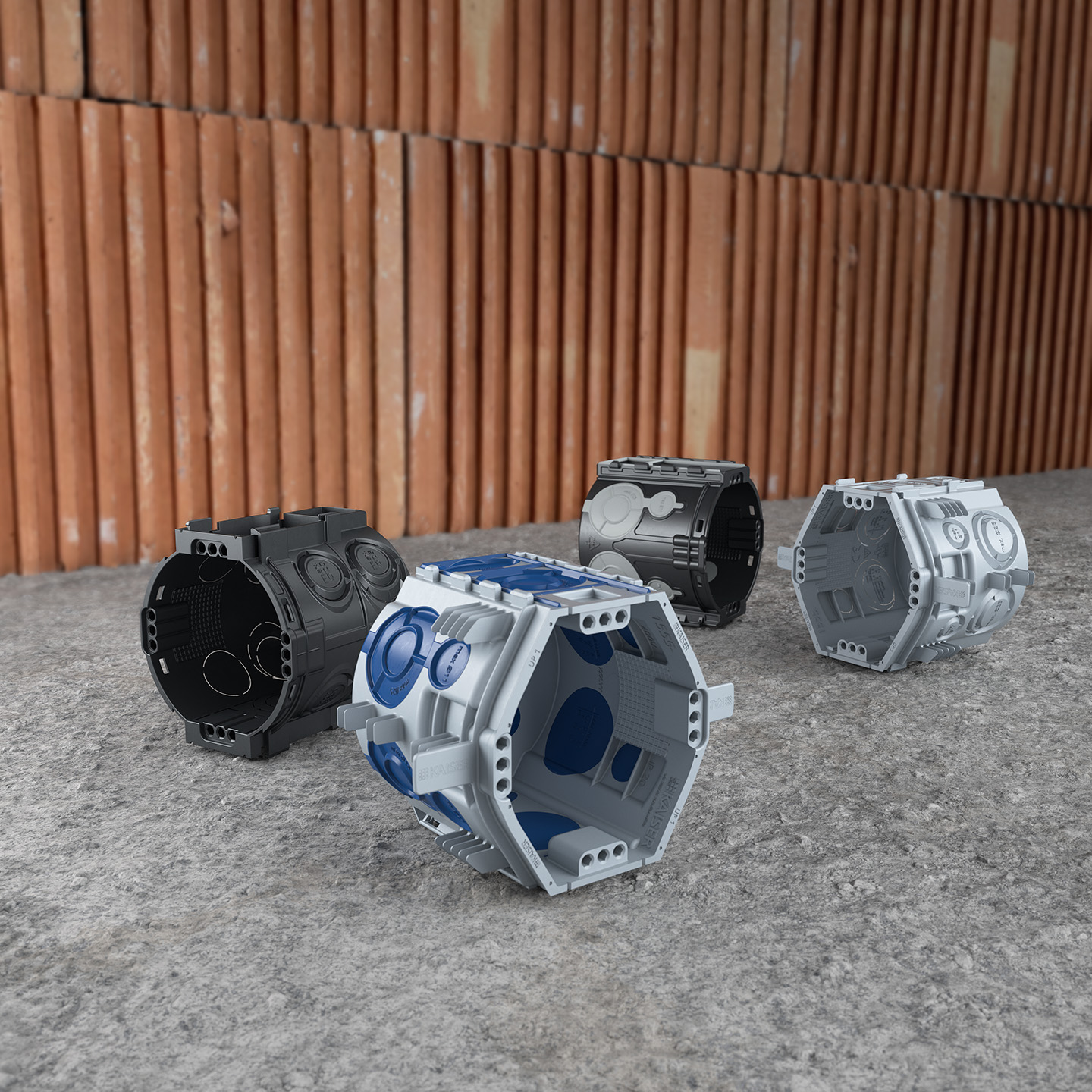

UP¹ is the new flush-mounting range for electrical installations. Users can choose between classic installation with plaster or quick-fix installation, and between simple installation and air-tightness, and then enjoy all the practical advantages of the new UP¹ family. Advantages such as the side-neutral and stable combination, open through-wiring and break-out separator, floor-level entries, floor-level through-wiring and 4x3 screw domes, which were introduced with the UP¹ ECON® Fix, are now found throughout the entire range. Quick fixing using clamping ribs in all blocks saves up to 50% of installation time without the use of plaster or PU foam. These boxes also offer 25% more installation volume compared to conventional Flush-mounting one-gang junction boxes.

Advantages of all boxes in the UP¹ family (UP¹, UP¹ ECON®, UP¹ Fix, UP¹ ECON® Fix):

• Stable and side-neutral combination
• Open and versatile through-wiring
• Fully insulated through-wiring close to the floor for deep boxes
• 4 triple expanding claw fields / screw domes for secure hold
• Entries in the box base and cable and pipe feed-throughs close to the base
• Triple pipe feed-through M25 from one direction to device and one-gang junction boxes
• Entries up to M32 on electronics boxes and two-gang junction boxes, combination openings M20/M25
• Combination openings M20/M25

Advantages of boxes with ECON® membrane: (UP¹ ECON®, UP¹ ECON® Fix):

• Air-tight design with ECON® multi-membrane
• Prevents leaks in exterior walls made of hollow chamber blocks
• Variable and toolless cable and conduit entries

Advantages of boxes with quick fixing (UP¹ Fix, UP¹ ECON® Fix):

• 25% more volume compared to conventional one-gang junction boxes
• Quick installation in all wall structures (box variants with clamping ribs on the box, no installation of accessories, use of PU foam is possible)
• No mandatory use of PU foam – boxes hold in place thanks to quick fixing
• Stepless plaster compensation (accessories for device and one-gang junction boxes UP¹ Fix or UP¹ ECON® Fix)

With built-in responsibility.

Through the use of recycled granulate and well-thought-out product design, KAISER makes a certified contribution to resource conservation – without compromising on quality, function and safety.

• Made from recycled material. All flush-mounting boxes in the UP¹ family are made from recycled granulate and stand for the responsible use of resources.
• Less additional material on the construction site. UP¹ Fix and ECON® Fix boxes do not require plaster or installation foam – this reduces material usage and waste.
• Tested sustainability: Our UP1 flush-mounting boxes have been tested for harmful substances by the Sentinel Holding Institute and can be integrated into sustainable construction projects with the SHI product passport.

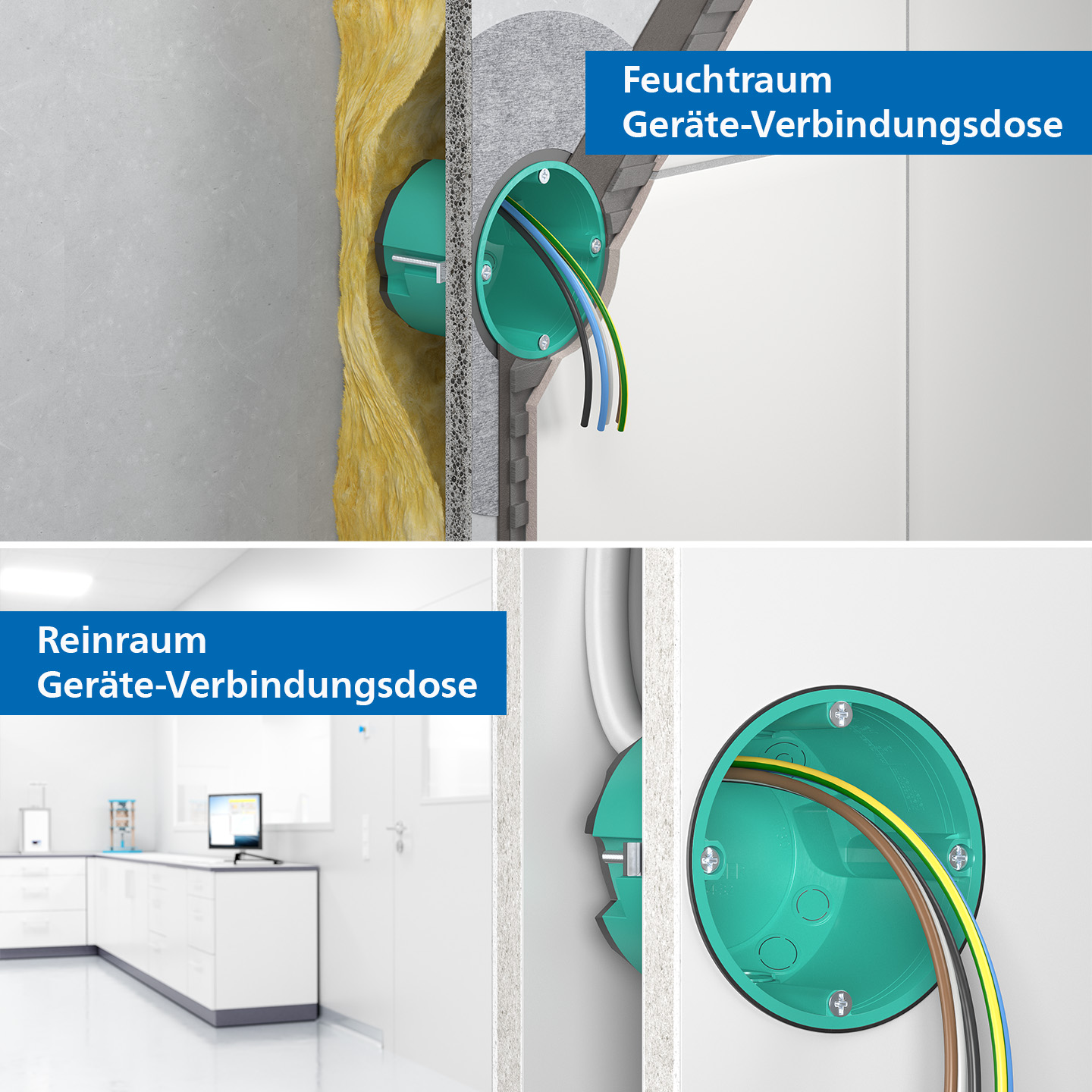

The new damp room one-gang junction box from KAISER provides optimum sealing for electrical installations in areas exposed to splash water, process water and cleaning water. Thanks to the 5 cm peripheral adhesive collar, the innovative and for applications DIN 18534-tested and certified waterproof one-gang junction box can be easily integrated into the sealing layer (e.g. flexible sealing slurry or sealing membranes) and maintains the protection target of the wall. Uncontrolled moisture exchange is permanently prevented thanks to the precisely fitting cable entries created using the KAISER universal opening cutter.

• For professional installation in sealed interior rooms, such as commercial kitchens, bathroom modules or damp rooms in hospitals
• Tested and certified watertightness for applications in accordance with DIN 18534
• For installation openings Ø 68 mm
• Six air-tight and watertight cable entries
• Device screws with plus-minus drive
